Toroidal
Transformers
 |
General
Specifications
- Input Voltage: 100~120VAC (TD-120
Series)
220~240VAC (TD-230 Series)
- Output Power: 25~2200VA
- Dielectric strength: 3800V RMS
- Insulation: Class B insulation
(130°C)
- Certified to UL1411,CSA22.2 NO.
1-94, EN61558 as well as compliance to most
standards.
- UL File NO.
E208103
|
MODEL
|
|
 |
 |
|
|
|
|
Power
VA |
Part Number |
Output
Voltage(V) |
Output
Current(A) |
Voltage
Regulation% |
Dimensions
OD×H(mm) |
Weight
KG |
Mounting
mm |
|
TD-120 Series |
TD-230 Series |
|
25 |
TD-120-0025# |
TD-230-0025# |
2×(6~60) |
2.5~0.2 |
15 |
84×32 |
0.6 |
M6×40 |
|
50 |
TD-120-0050# |
TD-230-0050# |
2×(6~60) |
5.0~0.4 |
13 |
84×38 |
0.8 |
M6×45 |
|
75 |
TD-120-0075# |
TD-230-0075# |
2×(6~60) |
6.0~0.4 |
13 |
100×40 |
1.1 |
M6×50 |
|
100 |
TD-120-0100# |
TD-230-0100# |
2×(6~60) |
8.0~0.6 |
13 |
104×45 |
1.5 |
M6×55 |
|
150 |
TD-120-0150# |
TD-230-0150# |
2×(6~60) |
12.5~1.0 |
10 |
110×52 |
1.9 |
M6×60 |
|
200 |
TD-120-0200# |
TD-230-0200# |
2×(6~60) |
16.5~1.0 |
8 |
120×53 |
2.5 |
M8×60 |
|
250 |
TD-120-0250# |
TD-230-0250# |
2×(6~60) |
20.8~2.0 |
8 |
125×55 |
2.9 |
M8×65 |
|
300 |
TD-120-0300# |
TD-230-0300# |
2×(6~60) |
25.0~2.5 |
7 |
127×60 |
3.2 |
M8×70 |
|
500 |
TD-120-0500# |
TD-230-0500# |
2×(12~60) |
25.0~4.0 |
6 |
127×68 |
4.3 |
M8×80 |
|
700 |
TD-120-0700# |
TD-230-0700# |
2×(15~60) |
25.0~5.0 |
5 |
135×75 |
6.4 |
M8×85 |
|
1000 |
TD-120-1000# |
TD-230-1000# |
2×(18~60) |
25.0~8.3 |
4 |
145×80 |
8.2 |
M10×90 |
|
1200 |
TD-120-1200# |
TD-230-1200# |
4×60 |
4×4.5 |
4 |
160×80 |
8.8 |
M10×90 |
|
1300 |
TD-120-1300# |
TD-230-1300# |
4×76 |
4×4.3 |
4 |
165×80 |
9.2 |
M10×90 |
|
2200 |
TD-120-2200# |
TD-230-2200# |
2×60 |
2×18.0 |
4 |
170×80 |
10 |
M10×90 |
|
Note: |
"# " express A~ B~ C~ D~
|

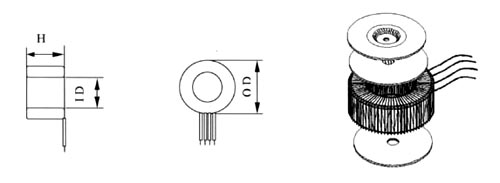

Toroidal
Structure
|
 | |
|
